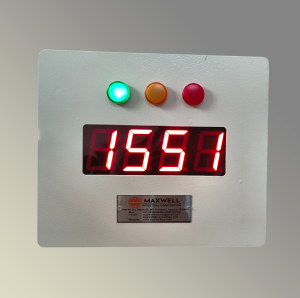

Digital Immersion Pyrometer
Maxwell Digital Immersion Pyrometers are equipped with a high-speed STM microcontroller, enabling fast, stable, and highly reliable measurement of molten metal temperature. The system delivers measurement accuracy of ±1°C, ensuring precise process control in demanding melt shop environments. Designed for long-term operational stability, the instruments are field-proven and maintain calibration integrity over time, eliminating the need for periodic recalibration under normal operating conditions.
| Technical Specifications – DIGITAL IMMERSION PYROMETER |
|---|
| Model | MAX 2025 with 50mm King Bright LED Display |
| Type of T/C | S / R / B Type – Field Settable |
| Calibration Range |
Built-In Calibration As Per ITS 90 Table For ‘S’ Type T/C : 0 – 1768°C For ‘R’ Type T/C : 0 – 1768°C For ‘B’ Type T/C : 250 – 1820°C |
| King Bright Display | 2" (50mm), 7 Segment LED Display |
| Audio Visual Alarm | Provided (Special Feature Only In Our System) |
| System Self Test | Provided |
| Password | Provided For Unauthorized Tampering |
| Serial Output | RS-485 Available For Remote Display & Traffic Light |
| Supply | 230 VAC +10% / 50Hz +3% |
| Measuring Principle | Plateau Detection - Automatic & Latching |
| M.I.P | Field Settable From 2–5 Seconds (Default 3 Secs) |
| Auto Resetting | Provided On Insertion Of T/C Tip |
| Accuracy | ±1°C |
| Resolution | 1°C |
| CJC | Automatic - Built In From -10°C To 55°C |
| Ambient | 0°C To 55°C |
| Dimensions |
W - 305mm, H - 255mm, D - 235mm Panel Cutout : 290 × 240 mm |
| Weight | 7 kgs |
Download Our Brochure
Key Features:
High-Accuracy Temperature Display
Industrial-Grade Build Quality
Fast Digital Temperature Reading
Easy-to-Operate Design
Frequently asked questions
A Digital Immersion Pyrometer is used to accurately measure the temperature of molten metals during melting and casting operations.
It is suitable for measuring molten steel, iron, aluminium, copper, and other molten metals.
The device offers high precision with an accuracy of ±0.1% of full scale or a maximum of ±3°C, ensuring reliable readings in critical operations.It provides accurate readings, fast response, easy operation, and reliable industrial performance.
Maxwell pyrometers are built for precision, durability, and consistent temperature measurement in industrial applications.
Choose a pyrometer based on the metal type, temperature range, and your industrial application requirements.
