Traffic Light For Audio Visual

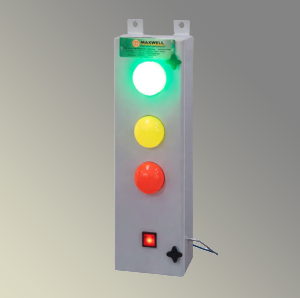

Maxwell Traffic Light Field Alarm System
Maxwell Traffic Light Field Alarm System is designed for safe and efficient
liquid metal temperature measurement in steel plants and foundries. The system uses
three coloured indicator lights—Red, Amber, and Green—along with an
audible hooter to provide clear operational status and improve operator safety
during the temperature measurement process.
Key Features
- Green Light: Indicates proper continuity when the thermocouple is correctly inserted onto the lance, accompanied by a short hooter sound.
- Red Light: Activates when continuity is open or when the measurement is completed or failed. It also remains ON and blinks with short hooter alerts in case of reverse polarity or high output.
- Amber Light: Remains ON while the temperature measurement is in progress.
- Measurement Complete: A short hooter signal (approximately 300 ms) indicates successful completion of the measurement cycle.
Benefits
- Enhances operator safety during molten metal temperature measurement.
- Provides clear visual and audible status indications.
- Improves measurement accuracy and reliability.
- Suitable for steel plants, foundries, and metal processing industries.
- Robust design for continuous industrial operation.
| Technical Specifications – MAX 2025-TL |
|---|
| No. of Displays | 3 Bulbs |
| Display Size | 65 mm |
| Display Type | LED Bulbs (Green, Amber & Red) |
| Data Input | RS-485 |
| Transmission Rate | 9600 bps |
| Ambient Temperature | 0°C to 60°C |
| Power Supply | 230V AC ±10% / 50Hz ±3% |
| Dimensions | W - 125 mm, H - 400 mm, D - 150 mm |
| Weight | 5 kgs |
Download Our Brochure
Key Features:
Bright LED Indicators
Clear Visual Signaling
Instant Audio Alerts
Reliable Industrial Operation
Frequently asked questions
A Traffic Light for Audio Visual provides clear visual and audio signals to indicate process status in industrial environments.
It is widely used in foundries, steel plants, manufacturing units, and industrial automation systems.
It improves operator awareness, enhances workplace safety, and supports efficient process monitoring.
Yes, it combines bright LED indicators with audio alerts for clear and instant status notifications.
Maxwell systems offer reliable performance, durable construction, and effective signaling for industrial applications.
